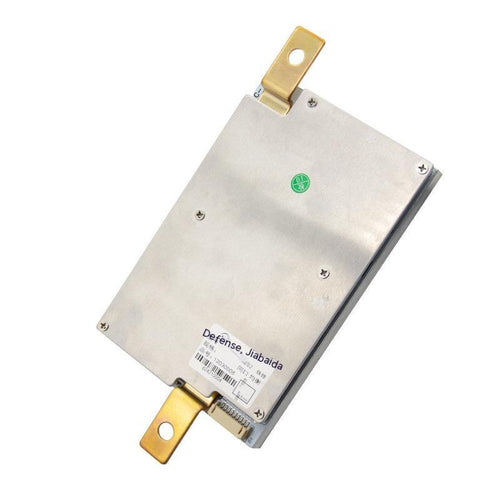

4 Series 12V 8 Series 36V High Current Inverter Protection Board

Product Introduction:

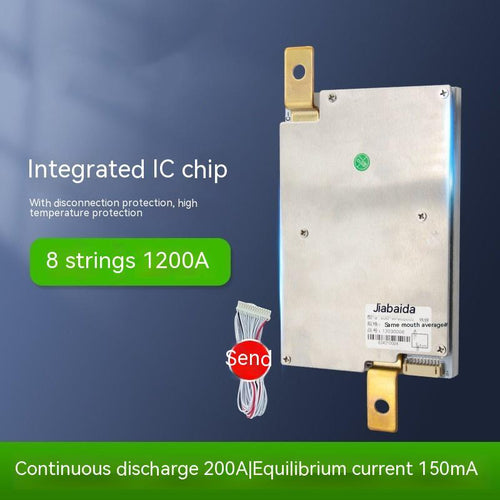

Discharge current: 200A
Discharge overcurrent protection value: 2-3 times the continuous current
Charging current [same port]: 200A
Charging current [split port]: NA
Charging voltage: Iron lithium battery pack string number X 3.65V
Product size: 160 * 105 * 20mm
Material: PCB
Model: 8 series iron lithium 100A lithium battery protection board; 8 series iron lithium 120A lithium battery protection board; 8 series iron lithium 150A lithium battery protection board; 8 series iron lithium 200A lithium battery protection board; 4 series of iron lithium 100A lithium battery protection plates; 4 series iron lithium 150A lithium battery protection board; 4 series iron lithium 200A lithium battery protection board; 4 series iron lithium 250A lithium battery protection board; 4 series iron lithium 300A lithium battery protection board;

Packing list:

1*  Inverter Protection Board
